Phoenix Contact QUINT-PS/1AC/24DC/20 - 2866776 Power Supply Unit
Brief Description of Phoenix Contact QUINT-PS/1AC/24DC/20 - 2866776 Power Supply Unit
Primary-switched QUINT POWER power supply for DIN rail mounting with SFB (Selective Fuse Breaking) Technology, input: 1-phase, output: 24 V DC/20 A
Product Description of Phoenix Contact QUINT-PS/1AC/24DC/20 - 2866776 Power Supply Unit

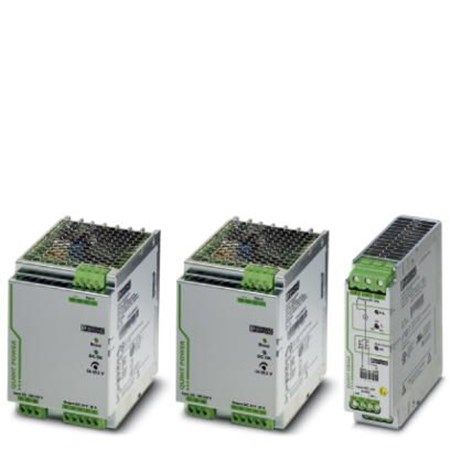

• QUINT POWER power supplies with maximum functionality
• QUINT POWER circuit breakers magnetically and therefore quickly trip at six times the nominal current, for selective and therefore cost-effective system protection. The high level of system availability is additionally ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur.
• Reliable starting of heavy loads takes place via the static power reserve POWER BOOST. Thanks to the adjustable voltage, all ranges between 5 V DC ... 56 V DC are covered.
Our advantages of Phoenix Contact QUINT-PS/1AC/24DC/20 - 2866776 Power Supply Unit
• For superior system availability
• Reliable starting of difficult loads with the static POWER BOOST power reserve with up to 1.5 times the nominal current permanently
• Fast tripping of standard circuit breakers with dynamic power reserve SFB (selective fuse breaking) technology with up to 6 times the nominal current for 12 ms
• Preventive function monitoring
Key Commercial Data of Phoenix Contact QUINT-PS/1AC/24DC/20 - 2866776 Power Supply Unit
Orderkey 2866776
Packing unit 1 pc
Catalog page Page 159 (C-6-2015)
GTIN 4046356113557
Weight per Piece (excluding packing) 2,100.500 g
Custom tariff number 85044030
Country of origin TH (Thailand)
