Honeywell MCXL-XWHM-Y-NA BW MicroClip XL Multi-Gas Detectors
Honeywell MCXL-XWHM-Y-NA BW MicroClip XL Multi-Gas Detectors

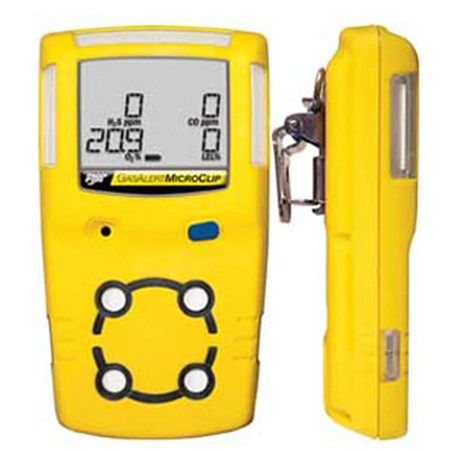

GasAlertMicroClip XL 4-Gas Detector Combustible (% LEL), oxygen (O2), hydrogen sulfide (H2S), carbonmonoxide (CO) – yellow housing MCXL-XWHM-Y-CN
MCXL-XWHM-Y-NA Honeywell BW MicroClip XL Multigas Monitor with extra battery life - XL= Xtra Life
Meets ACGIH 1ppm H2S TWA recommendations.
MCXL-XWHM-Y-NA Honeywell BW MicroClip XL for O2, LEL, H2S, and CO.
Honeywell MCXL-XWHM-Y-NA BW MicroClip XL Multi-Gas Detectors
Slim and compact, GasAlertMicroClip XL multi-gas detector provides affordable protection from atmospheric hazards and is comfortable to wear. With continuous signal indicating proper detector operation, the BW MicroClip XL gas detector is reliable in any situation. Simple one-button use of the BW MCXL-XWHM-Y-NA GasAlert MicroClip XL atmospheric hazard monitor helps cut down on employee training time.
This OSHA-compliant multi-gas monitor is affordable and ready as a device for confined space entry. This portable atmospheric hazard sensor is fully compatible with BW's MicroDock II automatic test and calibration system. Some of the benefits of the detector are:
• Multi-gas versatility with one button simplicity
• Continuous visual compliance with IntelliFlash
• Incredibly thin and lightweight, making it comfortable to wear
• Powered by lithium polymer battery
Honeywell MCXL-XWHM-Y-NA BW MicroClip XL Multi-Gas Detectors
With ease of use, portability and comfort when wearing the device, the BW GasAlertMicroChip XL detector is a device that shouldn’t be passed up. Stay safe and work ready with this BW device today.
Deluxe Confined Space Kit P/N MC-CK-DL Includes- manual aspirator kit, IR connectivity kit with latest version of Fleet Manager II software, calibration cap with 1 ft. / 0.3 m hose, 0.5 LPM regulator, sampling probe, leather carrying case, auxiliary filter and hard sided carrying case with foam insert.
This monitor was formally called The BW GasAlert MicroClip XL by Honeywell Analytics.
Honeywell MCXL-XWHM-Y-NA BW MicroClip XL Multi-Gas Detectors
Combustible (% LEL, filtered), oxygen (O2), hydrogen sulfide (H2S), carbon monoxide (CO) - yellow housing, NA version (North America)
• Guaranteed runtime for at least a 12-hour shift — down to -4°F / -20°C — without compromising LEL detection of hydrogen, acetylene and other combustible gases
• Durable, rechargeable lithium polymer battery — tested to last in extreme environments
• Ergonomic and wearable — doesn’t weigh you down
• Real-time gas concentrations shown on LCD
• Bright, wide-angle visual alarm bars
• IP68 rating ensures maximum protection against dust and water
• User-friendly, tamper-proof operation with just one button and intuitive LCD icons
• IntelliFlash™ light indicating detector has been bump tested and is monitoring correctly
• Self-test of sensors, battery status, circuit integrity and audible/visual alarms on startup
• Compatible with MicroDock II docking station for automated bump tests and calibration
• Compatible with Fleet Manager II software for reporting and fleet management
• Multi-language support in English, French, German, Spanish and Portuguese
Honeywell MCXL-XWHM-Y-NA BW MicroClip XL Multi-Gas Detectors
MCXL-XWHM-Y-NA GasAlertMicroClip XL, Yellow housing
Small size. Easy to use. Reliable operation. Affordable protection.
With that combination of benefits, it’s no wonder the GasAlertMicroClip is the world’s most popular multi-gas detector.
The latest addition to the GasAlertMicroClip Series is the GasAlertMicroClip X3. This model offers a three-year warranty and an all-new O2 sensor — along with all the other benefits of workers’ favorite four-gas detector — to deliver the best combination of reliability, cost of ownership and ease of use.
Features of Honeywell MCXL-XWHM-Y-NA BW MicroClip XL Multi-Gas Detectors
• Simultaneously monitor for up to four gases including O2, H2S, CO and combustibles
• Battery runtime of 18 hours in normal temperatures; cold weather guarantee of at least 12 hour runtime for full warranty period.
• New IP68 rating for unmatched water protection, giving workers the confidence that it will stand up to challenging conditions.
• Small size. Easy to use. Reliable operation. Affordable protection.
With that combination of benefits, it’s no wonder the GasAlertMicroClip is the world’s most popular multi-gas detector, serving as your trusted companion in hazardous environments — keeping you safe without weighing you down.
Plus, it’s the first multi-gas detector with a rating of IP68 for unmatched water protection. So you can be confident it will stand up to challenging conditions.
Use our unique advanced technology for safety, compliance and productivity.
• Advanced engineering for reliable battery performance
• Reflex Technology™ automated self-test function routinely checks the operating condition of the sensors to increase safety, up-time, and overall worker confidence
• Compact, lightweight and easy to use — no expertise required
• Flashing green IntelliFlash™ light for compliance at a glance
Physical Specifications of Honeywell MCXL-XWHM-Y-NA BW MicroClip XL Multi-Gas Detectors
Size (h x w x d)Physical size shall be no larger than 4.4 x 2.4 x 1.2 in. / 11.3 x 6.0 x 3.2 cm
Weight Weight of instrument shall be no more than 6.7 oz. / 190 g, including aligator clip.
Case Material Case material shall be rugged, impact-resistant, non-corrosive composite material that will prevent spark generation and shall be available in highly visible safety yellow or black.
Integral Boot The instrument shall be equipped with a built-in concussion-proof boot.
Vibrator Alarm The detector shall be equipped with an internal vibrator alarm for high noise areas.
Handling Unit shall easily attach to pocket or belt.
Carrying AttachmentsUnit shall be equipped with a high-tension stainless steel alligator clip.
Accessories The following accessories must be available:
A manual aspirator pump with sampling hose or probe
A vehicle charger
Confined space entry kits in a hard-sided carrying case
Automatic Test and Calibration Station that shall:
Bump test and calibrate instruments in the field without requiring use of a desktop PC or laptop
Be fully portable and available in a variety of portable kit options
Provide simultaneous management of up to 6 instrument docking modules
Include battery and 110-240 VAC line power options
Include software for downloading, evaluating and archiving monitoring results
User Interfaces of Honeywell MCXL-XWHM-Y-NA BW MicroClip XL Multi-Gas Detectors
Display Type Large alphanumeric LCD (Liquid Crystal Display) type display with simultaneous and continuous readouts for each gas monitored in ppm, %LEL and % v/v values, as applicable, showing the real- time gas concentrations present. Digits not to be less than 0.260 in. / 6.50 mm high.
Display Symbols (Icons) Gas alarm icons will clearly identify alarm type, gas hazard and alarm level encountered, low battery condition, instrument status, safe display, stealth, and calibration steps.
Keypad/Switches One-button operation must: activate the detector; run the self-test; display alarm setpoints; display peak gas exposures and clears them; calibrate and zero. There shall be no requirement to access hidden switches for any instrument operation.
Ordering Codes of Honeywell MCXL-XWHM-Y-NA BW MicroClip XL Multi-Gas Detectors
MCXL-XWHM-Y-NA
MCXL-XWHM-B-NA
MCXL-XWH0-Y-NA
MCXL-XWH0-B-NA
MCXL-XW0M-Y-NA
MCXL-XW0M-B-NA
MCXL-X0HM-Y-NA
MCXL-X0HM-B-NA
MCXL-XW00-Y-NA
MCXL-XW00-B-NA
MCXL-00HM-Y-NA
MCXL-00HM-B-NA
MCXL-X0H0-Y-NA
MCXL-X0H0-B-NA
MCXL-X00M-Y-NA
MCXL-X00M-B-NA
MCXL-X000-Y-NA
MCXL-X000-B-NA
MCXL-00H0-Y-NA
MCXL-00H0-B-NA
MCXL-000M-Y-NA
MCXL-000M-B-NA
