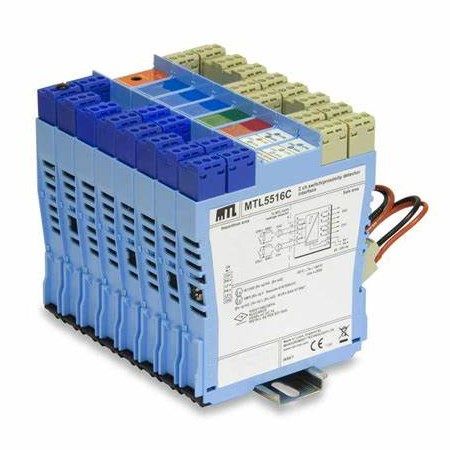

MTL5516C Proximity Detector Interface 2-ch. Switch, LFD/phase reversal, input NAMUR, RO 2CO, safety voltage max. 10.5V, safety current max. 14mA, 20..35VDC, MTL
Model Code: MTL5516C
Product Details of MTL5516C Switch Proximity Detectors MTL5516C Safety Barriers In Stock
The MTL5516C is a Switch/Proximity Detector Interface enables two safe-area loads to be controlled by a switch or proximity detector located in a hazardous-area. When selected, open or short circuit conditions in the field wiring are detected by the line-fault-detect (LFD) facility and also indicated on the top of the module. Phase reversal for each channel is selected by a switch on the side of the module and output is provided by changeover relay contacts.
Inputs conforming to BS EN60947-5-6:2001 standards for proximity detectors (NAMUR)
Two single-pole relays with changeover contacts
Incorporating advanced circuit design and innovative isolating transformer construction. The compact 16mm wide design reduces weight and gives a high packing density and reduction in power consumption. They build on the success of the MTL5000 series to bring the benefits of galvanic isolation with exceptional design and reliability.,II (I) GD (Ex ia) IIC,IECEx, ATEX (Baseefa) FM, CSA
Features of MTL5516C Switch Proximity Detectors MTL5516C Safety Barriers In Stock
• 3-Port Isolation
• High Packing density
• Low power dissipation
• Multi-channel I/O modules
• Compatible with preceding MTL5000 series
• Assessed for Functional safety IEC61508 applications
• Required EX numbers and information displayed on cover where applicable
5500 Series IS Interface Units MTL5516C Switch Proximity Detectors MTL5516C Safety Barriers In Stock
The MTL5500 series is the latest generation of MTL isolators. Incorporating advanced circuit design and innovative isolating transformer construction. The compact 16mm wide design reduces weight and gives a high packing density and reduction in power consumption. They build on the success of the MTL5000 series to bring the benefits of galvanic isolation with exceptional design and reliability.,II (I) GD (Ex ia) IIC,IECEx, ATEX (Baseefa) FM, CSA
PRODUCT LITERATURE of MTL5516C Switch Proximity Detectors MTL5516C Safety Barriers In Stock
| Product Code | Description |
|---|---|
 Symbol denotes that the equipment is suitable for use in hazardous area applications. Symbol denotes that the product has been assessed for functional safety applications. | |
| SM45-55-AI | FSM Safety Manual - Analogue Input Modules |
| SM45-55-AO | FSM Safety Manual - Analogue Output Modules |
| SM45-55-BI | FSM Safety Manual - Binary Input Modules |
| SM45-55-MMI | FSM Safety Manual - Machine Monitor Interfaces |
| SM45-55-SAD | FSM Safety Manual - Solenoid / Alarm Driver Modules |
| 1. Intro of MTL5516C Switch Proximity Detectors MTL5516C Safety Barriers In Stock | |
| INA4500 | MTL4500/4600 range Instructions for Safe Use |
| INM4500/4600 | MTL4500/4600 range Instruction Manual |
| MTL4500-5500-ACC | Backplanes, Enclosures & Accessories |
| MTL4500-5500-CS | Common Specifications |
| MTL4500-5500-DS | MTL4500-5500 range Data Set |
| 2. Digital Input of MTL5516C Switch Proximity Detectors MTL5516C Safety Barriers In Stock | |
| MTL4501-SR | 1ch DI failsafe solid-state output + LFD alarm |
| MTL4504 | 1ch DI relay output + LFD alarm + phase reversal |
| MTL4510 | 4ch DI solid-state output |
| MTL4510B | 4ch DI multifunction solid-state output |
| MTL4511 | 1ch DI relay output |
| MTL4513 | 2ch DI solid-state output |
| MTL4514D | 1ch switch/prox input, dual output relay |
| MTL4514_B | 1ch DI relay output + LFD alarm |
| MTL4516 | 2ch DI relay output |
| MTL4516C | 2ch DI with changeover relay output |
| MTL4517 | 2ch DI relay output + LFD alarm |
| 3. Digital Output of MTL5516C Switch Proximity Detectors MTL5516C Safety Barriers In Stock | |
| MTL4521 | Loop powered solenoid driver |
| MTL4521L | loop powered solenoid driver IIC |
| MTL4523 | Solenoid driver with LFD |
| MTL4523L | Loop powered solenoid driver + LFD |
| MTL4523R | Solenoid driver with LFD |
| MTL4523V-VL | Solenoid/Alarm driver with voltage control |
| MTL4524 | Switch operated solenoid driver |
| MTL4524S | Switch operated solenoid driver, 24V override |
| MTL4525 | Switch operated solenoid driver low power |
| MTL4526 | 2ch switch operated relay |
| 4. Analogue Input of MTL5516C Switch Proximity Detectors MTL5516C Safety Barriers In Stock | |
| MTL4541 | 1ch 2/3 wire Transmitter repeater |
| MTL4541A | 1ch Transmitter repeater, passive input |
| MTL4541AS | 1ch Transmitter repeater, passive input, current sink |
| MTL4541B | MTL4041B replacement |
| MTL4541P | MTL4041P replacement |
| MTL4541S | 1ch 2/3 wire Transmitter repeater, current sink |
| MTL4541T | 2/3 wire Transmitter repeater |
| MTL4544 | 2ch 2/3 wire Transmitter repeater |
| MTL4544A | 2ch Transmitter repeater, passive input |
| MTL4544AS | 2ch Transmitter repeater, passive input, current sink |
| MTL4544B | MTL4044 replacement |
| MTL4544D | 2/3 wire transmitter repeater, dual output |
| MTL4544S | 2ch 2/3 transmitter repeater, current sink |
| 5. Analogue Output of MTL5516C Switch Proximity Detectors MTL5516C Safety Barriers In Stock | |
| MTL4546 | 1ch 4-20mA smart isolating driver + LFD |
| MTL4546C | 1ch 4-20mA smart isolating driver + oc LFD |
| MTL4546S | 1ch 4-20mA HART isolating driver + LFD |
| MTL4546Y | 1ch 4-20mA smart isolating driver + oc LFD |
| MTL4549 | 2ch 4-20mA smart isolating driver + LFD |
| MTL4549C | 2ch 4-20mA smart isolating driver + oc LFD |
| MTL4549Y | 2ch 4-20mA smart isolating driver + oc LFD |
| 6. Temperature Input of MTL5516C Switch Proximity Detectors MTL5516C Safety Barriers In Stock | |
| MTL4573 | 1ch Temperature converter, RTD / THC |
| MTL4575 | 1ch Temperature converter, RTD / THC with alarm |
| MTL4576-RTD | 2ch Temperature converter, RTD |
| MTL4576-THC | 2ch Temperature converter, THC |
| MTL4581 | 1ch mV/THC isolator for low-level signals |
| MTL4582B | 1ch resistance isolator to repeat RTD signals |
| 7. Pulse and Vibration of MTL5516C Switch Proximity Detectors MTL5516C Safety Barriers In Stock | |
| MTL4531 | 1ch vibration probe interface |
| MTL4532 | 1ch pulse isolator, digital or analogue output |
| 8. Fire and Smoke of MTL5516C Switch Proximity Detectors MTL5516C Safety Barriers In Stock | |
| MTL4561 | 2ch loop-powered, for fire and smoke detectors |
| 9. General of MTL5516C Switch Proximity Detectors MTL5516C Safety Barriers In Stock | |
| MTL4599 | Dummy isolator |
| MTL4599N | General purpose feed-through module |
MTL5516C Switch Proximity Detectors MTL5516C Safety Barriers In Stock
| MTL5000 | Function | MTL5500 | Notes |
| MTL5011B | 1ch, changeover relay output | MTL5511 | |
| MTL5012 | 1ch, solid-state output | Use 1ch of MTL5513 | |
| MTL5012S | 1ch, solid-state output, UE1 special | No replacement | |
| MTL5014 | 1ch, c/o relay output, LFD relay | MTL5514/14D | MTL5514 does not provide 1in 2out function. MTL5514D with 1in 2out available Q1 2014 |
| MTL5015 | 2ch, solid-state output | MTL5513 | Common connection on haz side, max frequency response 500Hz |
| MTL5016 | 2ch, n/o relay output | MTL5516C | |
| MTL5017 | 2ch, n/o relay output, LFD relay | MTL5517 | LFD relay energises on alarm |
| MTL5018 | 2ch, changeover relay output | MTL5516C | Common connection on haz side |
| MTL5018ac | 2ch, changeover relay output, ac power | Continues as MTL5018ac. Alternative option: MTL5516C fitted with MPA5500 ac adaptor | |
| MTL5021 | Loop powered, IIC, (12.85V, 45mA, cl 45mA) | MTL5521 | (12.8V, 48mA, cl 48mA) |
| MTL5022 | Loop powered, IIB, (12.9V, 60mA, cl 60mA) | MTL5522 | (9.9V, 70mA, cl 70mA) |
| MTL5023 | Logic ctrl, lfd, phase,(12.85V, 45mA, cl 45mA) | MTL5523 | (12.8V, 48mA, cl 48mA) |
| MTL5024 | Logic ctrl, phase, (12.85V, 45mA, cl 45mA) | MTL5524 | (12.8V, 48mA, cl 48mA) |
| MTL5025 | Loop powered, IIC, (8.6V, 45mA, cl 45mA) | MTL5525 | (7V, 48mA, cl 48mA), lower Io |
| MTL5031 | Vibration transducer interface | MTL5531 | Now Velomitor compatible |
| MTL5032 | Pulse isolator | MTL5532 | Now with 4-20mA output and alarm |
| MTL5040 | Loop isolator | Use MTL5541 and MTL5546Y | |
| MTL5041 | For 2-wire transmitters | MTL5541 | |
| MTL5042 | For 2- or 3-wire txs, smart | MTL5541 | |
| MTL5043 | Dual output for 2-wire smart txs | MTL5544D | No current sink o/p. Passive Tx input |
| MTL5044 | Two channel for 2-wire txs | MTL5544 | Now with passive Tx inputs |
| MTL5045 | Isolating driver | MTL5546Y | Smart only versions |
| MTL5046 | Smart isolating driver with LFD | MTL5546 | |
| MTL5049 | Two channel isolating driver | MTL5549Y | Smart only versions |
| MTL5051 | Serial-data comms isolator | Continues as MTL5051 model | |
| MTL5053 | Fieldbus isolator/power supply | Discontinued | |
| MTL5061 | Fire/smoke detector interface | MTL5561 | |
| MTL5073 | Temperature converter | MTL5575 | Now with trip alarm |
| MTL5074 | Temperature converter | MTL5575 | Now with trip alarm |
| MTL5081 | mV/THC isolator | MTL5581 | |
| MTL5082 | Resistance isolator | MTL5582 | |
| MTL5113P | Failsafe sw/prox interface | MTL5501-SR | |
| MTL5314 | Trip amplifier | Continues as MTL5314 model | |
| MTL5344 | Repeater power supply | Discontinued | |
| MTL5349 | Isolating driver | Discontinued | |
| MTL5991 | 24V power supply | Continues as MTL5991 model | |
| MTL5995 | Fieldbus power supply | Convert to F10X range product |
MTL4500 Series Barriers MTL5516C Switch Proximity Detectors MTL5516C Safety Barriers In Stock
MTL4501-SR, MTL4504, MTL4510, MTL4510B, MTL4511, MTL4513, MTL4514 (B)(D), MTL4516, MTL4516C, MTL4517, MTL4521, MTL4521L, MTL4523, MTL4523L, MTL4523R, MTL4523V, MTL4523VL, MTL4524, MTL4524S, MTL4525, MTL4526, MTL4531, MTL4532, MTL4533, MTL4541, MTL4541A, MTL4541AS, MTL4541B, MTL4541P, MTL4541S, MTL4541T, MTL4544, MTL4544A, MTL4544AS, MTL4544B, MTL4544D, MTL4544S, MTL4546, MTL4546C, MTL4546S, MTL4546Y, MTL4549, MTL4549C, MTL4549Y, MTL4561, MTL4575, MTL4576-RTD, MTL4576-THC, MTL4581
ICC201-I1-O1 ICC201-I1-O2 ICC201-I2-O1 ICC201-I2-O2 ICC201-I2-O2 ICC211-I1-O2 ICC211-I2-O1 ICC211-I2-O2 ICC212 ICC221
ICC222 ICC241-T3 ICC241-T1 ICC241-T2 ICC301-I9-O1 ICC312 ICC316-T2 ICC317-T2-LFD ICC352-T1 ICC352-T2 ICC441 ICC446
