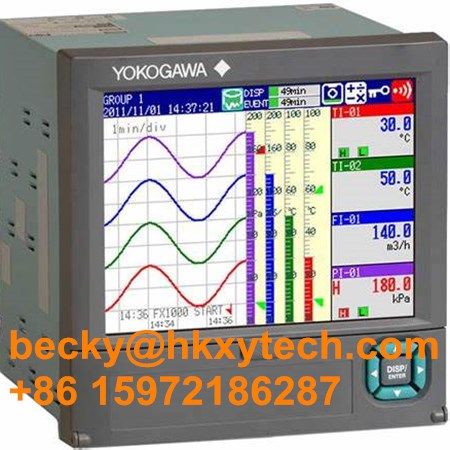

The FX1000 (Model FX1002/FX1004/FX1006/FX1008/FX1010/FX1012) is a Paperless Recorder that displays real-time measured data on a color LCD and saves data on a CompactFlash memory card (CF card)*1 or SD card*2. It can be hooked up to network via Ethernet,which enables to inform by Email and to monitor on Web site as well as to transfer files by using FTP. Also, it can communicate with Modbus/ RTU or Modbus/TCP. It comes with a two, four, six, eight, ten-channel or twelve-channel model. As the input signal, a DC voltage, thermocouple, resistance temperature detector, or contact signal can be set to each channel. The data saved on a CF card/SD card or the data transferred via networks can be converted to Lotus 1-2-3, Excel, or ASCII format file, facilitating processing on a PC. Not only this, the Viewer software allows a PC to display waveforms on its screen and to print out waveforms.

*1: On FXs that have a CF card slot (suffix code -4.)

*2: On FXs that have a SD card slot (suffix code -7.)

Yokogawa FX1006-0-3-L/A2/C3 Paperless Recorder FX1006-0-3-L/A2/C3 Data Loggers Arrived

Yokogawa Value Series FX1000 Paperless Recorder 6 Channels Data Logger

The FX1000 paperless recorder exceeds customer expectations for quality, high performance and capability—at a price that meets the needs of a cost-sensitive market. FX1000 combines a clear view of process data with highly reliable recording and efficient data access. Network file transfer and web browser viewing improves efficiency and saves time. In addition, FX1000 has the ability to monitor power consumption and record energy usage for diagnostic, preventative maintenance and cost savings.

Features of Yokogawa FX1006-0-3-L/A2/C3 Paperless Recorder FX1006-0-3-L/A2/C3 Data Loggers Arrived

Intuitive display, easy operation

* 5.7-inch, high-precision, wide-viewing-angle color TFT LCD

* Many types of displays such as trend, digital, bar graph, overview, alarm, and historical trend

* Remote viewing of the FX1000 screen through the Internet

* Multi-functional panel keys

* Start/stop recording by batch, and create data files

Comprehensive selection of measurement types, and exceptional performance

* Input types: DCV, TC, RTD, DI

* Scan interval: 1 s, 125 ms (fast sampling)

* Channels: 2, 4, 6, 8, 10, 12

* Measurement accuracy: ±0.05% of reading (DCV), ±0.15% of reading (TC, RTD)

Reliable data storage

* Large (400 MB) internal memory

* SD cards or CF cards, up to 32 GB

* USB interface (option)

* Binary data storage

* Network enables data redundancy

Support for a variety of applications

* Power measurement recording (option)

* Vacuum pressure recording (Log scale, option)

* Flow rate summation (option)

* F value calculation (option)

Reliable design and construction

* Space-saving design

* Waterproof and dustproof (IP65 compliant)

Signal Input and Alarms of Yokogawa FX1006-0-3-L/A2/C3 Paperless Recorder FX1006-0-3-L/A2/C3 Data Loggers Arrived

Measurement Input Yokogawa FX1006-0-3-L/A2/C3 Paperless Recorder FX1006-0-3-L/A2/C3 Data Loggers Arrived

Number of inputs, scan interval, and A/D integration

time:

Model No. of Measurement Channels Scan Interval A/D converter integration time

FX1002 2 125 ms, AUTO*1, 50 Hz,

250 ms 60 Hz

FX1004 4

FX1006 6 1 s, 2 s, 5 s AUTO*1, 50 Hz, 60

FX1008 8 Hz, 100 ms*2

FX1010 10

FX1012 12

Input Type:DC voltage, 1-5V, thermocouple (TC),resistance temperature detector (RTD),ON/OFF input (DI), and DC current (by

adding an external shut resistor)

Yokogawa FX1006-0-3-L/A2/C3 Paperless Recorder FX1006-0-3-L/A2/C3 Data Loggers Arrived

Number of alarms: Up to 4 alarms (levels) per measurement channel

Alarm type:

High limit, low limit, difference high limit,difference low limit, high limit on rate-ofchange alarm, low limit on rate-of-change alarm, delay high limit, and delay low limit

Yokogawa FX1006-0-3-L/A2/C3 Paperless Recorder FX1006-0-3-L/A2/C3 Data Loggers Arrived

Alarm delay time: 1 to 3600 s (for each channel)

Rate-of-change calculation interval of rate-of-change alarms:

1 to 32 times the scan interval (common to all channels)

Alarm output:

Output to the internal switch

Number of internal switches: 30

Internal switch operation: AND/OR operation selectable

Hysteresis:

High and low limit alarm: 0.0 to 5.0% of the span (common to all channels)

Difference high and low limit alarms:

0.0 to 5.0% of the span (common to all channels)

Yokogawa FX1006-0-3-L/A2/C3 Paperless Recorder FX1006-0-3-L/A2/C3 Data Loggers Arrived

Display: Displays the status on the respective operation screen and an alarm icon on the status display section when an alarm occurs.

Display operation: Hold or not hold the display until the alarm acknowledge operation.

Alarm hide function (alarm no logging function):

Not display alarms nor record to the alarm summary (for each channel)

Alarm information:

Displays a log of alarm occurrences on the alarm summary

1. Display of Yokogawa FX1006-0-3-L/A2/C3 Paperless Recorder FX1006-0-3-L/A2/C3 Data Loggers Arrived

Display: 5.7-inch TFT color LCD (240 × 320 dots)

Brightness:8 levels

Backlight saver function:

Dim or turn off the LCD backlight if there is no key operation for a specified time.

* A section of the LCD monitor may contain pixels that are always on or off. The brightness of the LCD may also not be uniform due to the characteristics of the LCD. This is not a malfunction.
